USER INTERFACE

UI40

MID RANGE EXTERNAL USER INTERFACE

Applicazioni

The electronic boards of UI40 external User Interface’s family are designed to be used together with main burner control PCBs.
It uses a wide icons LCD and push buttons and are designed to be installed in the BOX20 plastic box.
The UI40 external User Interfaces platform is a wide range of products that share the same mechanical features and which differ for the backlight color.

Compatibilità

The UI40 family PCBs can be interfaced with the following platforms:

  • MIAB burner control
  • BCN20 burner control
  • BCS30 burner control
  • BCH30 burner control
  • BOX20 plastic box

Caratteristiche generali

  • 88 icons LCD

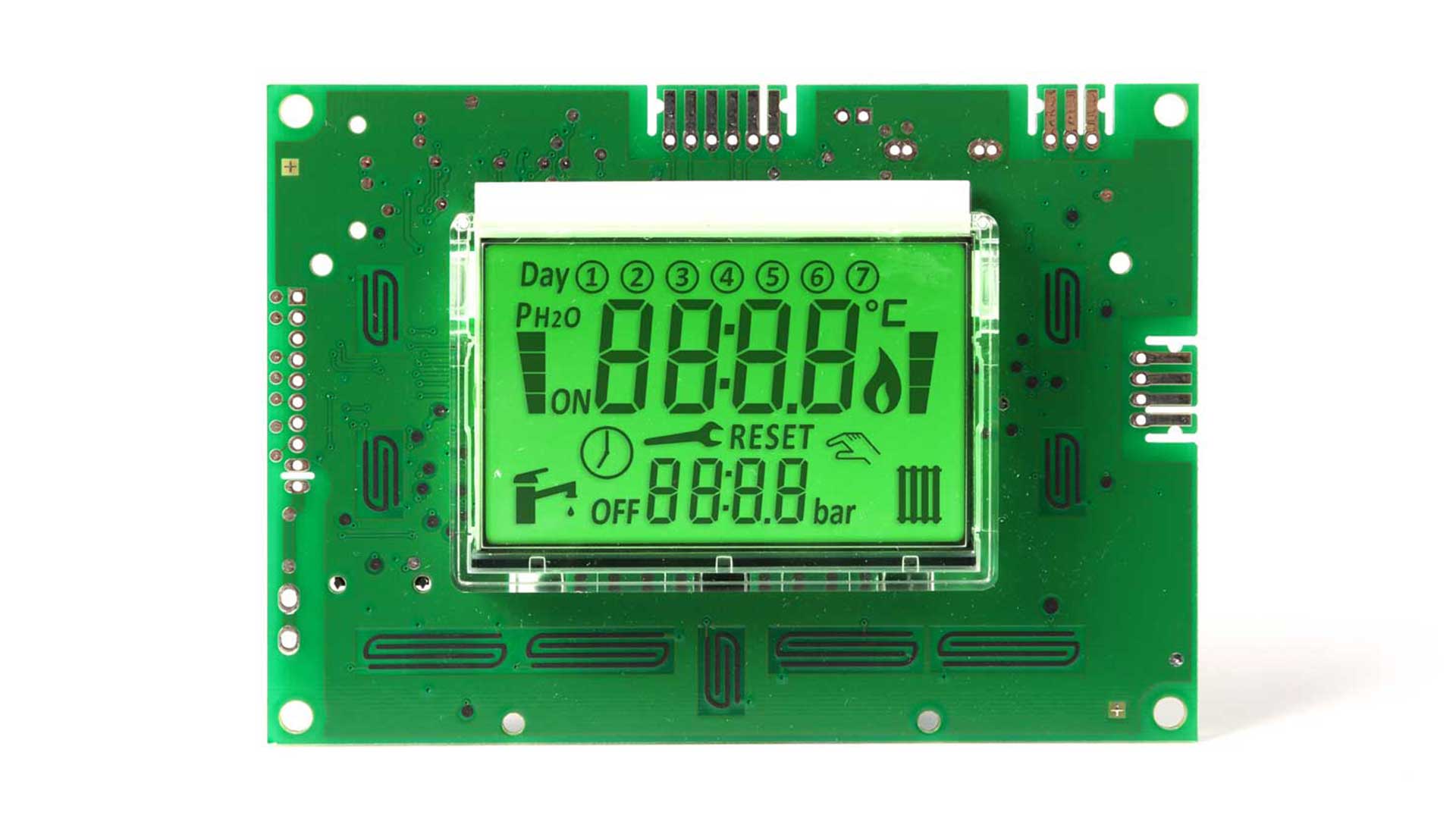

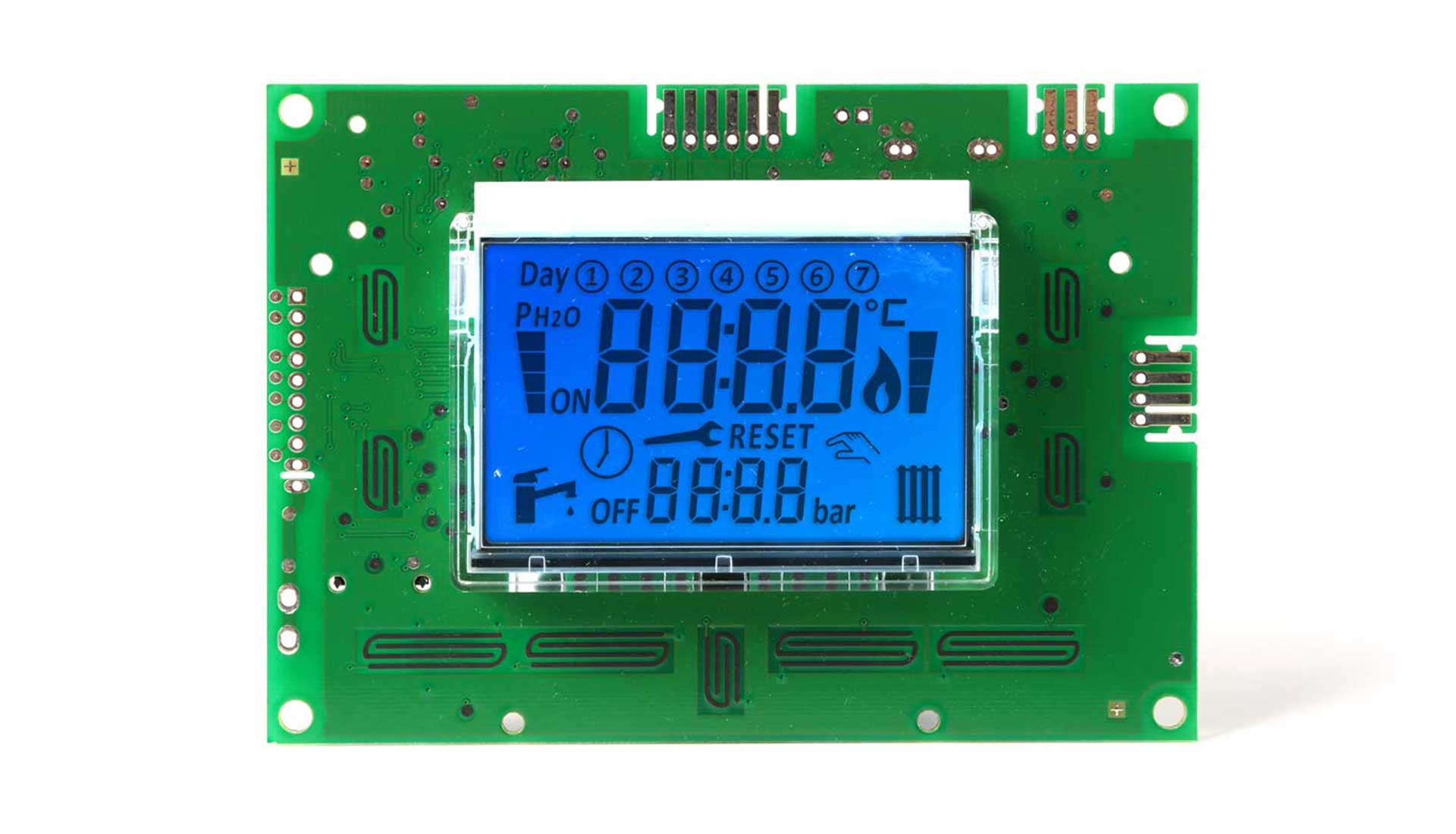

  • Three different backlight colors available
  • Rubber push buttons
  • Communication bus to interface with external burner control
  • Water pressure sensor management
  • External membrane keyboard connection available

Download “UI40”

UI40.pdf – Scaricato 12 volte – 769,78 KB
